Large file handling and out of core workflows

OMIO provides explicit support for working with large image data that do not fit into main memory. This includes Zarr-backed lazy loading, optional memory mapping on disk, and efficient visualization of large datasets in napari.

The examples below assume the following imports:

import omio as om
import pprint

Read large files lazily with Zarr backend

OMIO supports reading large image files that do not fit into memory by Zarr-backed lazy loading and optional memory mapping on disk.

To read a large TIFF file lazily, use the imread function with the zarr_store="memory" or zarr_store="disk" argument:

fname = "example_data/tif_large_Ca_imaging_large/1MP_SIMPLE_Stephan__001_001.tif"
image_lazy, metadata_lazy = om.imread(fname, zarr_store="memory")

print(f"Lazy image shape: {image_lazy.shape}")
print(f"Lazy image type: {type(image_lazy)}")

image_lazy

>>>
Lazy image shape: (1, 2000, 1, 355, 350)
Lazy image type: <class 'zarr.core.array.Array'>

<Array <FsspecStore(AsyncFileSystemWrapper, /14069212288)> shape=(1, 2000, 1, 355, 350) dtype=uint16>

You can now manipulate image_lazy as a Zarr array without loading the entire dataset into memory. For example, you can read a small chunk of the data:

sub_stack = image_lazy[0, 0:10, 0:100, 0:100]
print(f"Sub-stack shape: {sub_stack.shape}")

With zarr_store="disk", imread creates a temporary Zarr store on disk and memory-maps the data for efficient access. The default location of that temporary Zarr store is the parent directory of fname, where a folder called .omio_cache is created to hold the temporary data:

image_lazy_memmap, metadata_lazy_memmap = om.imread(fname, zarr_store="disk")
print(f"Lazy memmap image shape: {image_lazy_memmap.shape}")
print(f"Lazy memmap image type: {type(image_lazy_memmap)}")

image_lazy_memmap

>>>
Lazy memmap image shape: (1, 2000, 1, 355, 350)
Lazy memmap image type: <class 'zarr.core.array.Array'>

<Array file://example_data/tif_large_Ca_imaging_large/.omio_cache/1MP_SIMPLE_Stephan__001_001.zarr shape=(1, 2000, 1, 355, 350) dtype=uint16>

If the source file is stored on a server, external drive, or any other slower/shared location, you can keep OMIO’s disk-backed Zarr cache somewhere else, for example on a fast local SSD. Pass zarr_store_path to define the parent directory in which OMIO creates .omio_cache:

local_cache_root = "/Users/me/omio_local_cache" # absolute path
#local_cache_root = "omio_caches"               # path relative to the current working directory

image_local_cache, metadata_local_cache = om.imread(
    fname,
    zarr_store      = "disk",
    zarr_store_path = local_cache_root)

print(metadata_local_cache["omio_cache_folder"])
print(metadata_local_cache["omio_zarr_store_path"])

You can open any of the above lazy-loaded images in napari as you would do with any other OMIO read image:

om.open_in_napari(image_lazy_memmap, metadata_lazy_memmap)

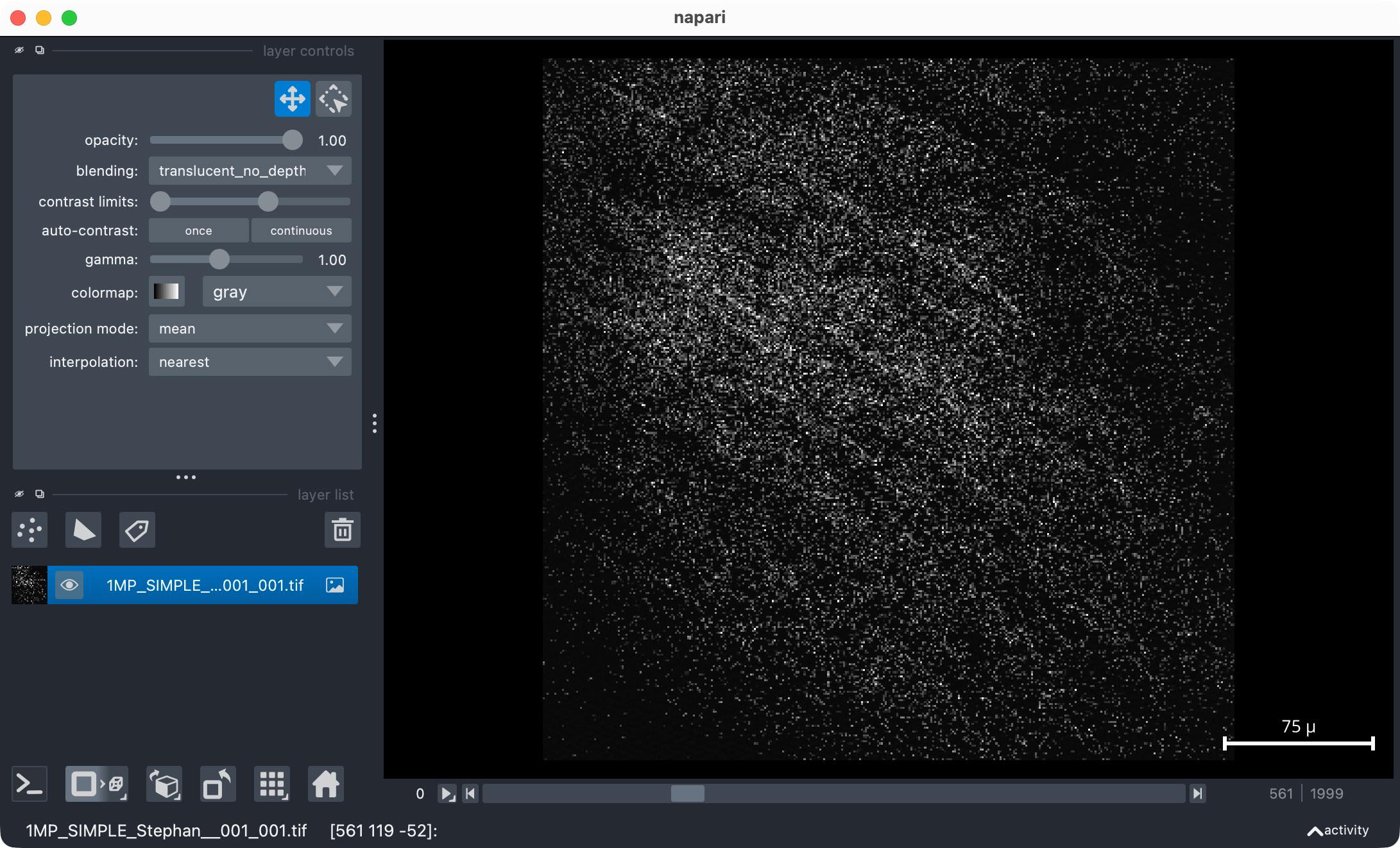

Screenshot of large TIFF opened in napari

Note

If you have opened an image with napari in the same interactive session before, OMIO will reuse the existing napari viewer instance to avoid opening multiple windows. In practice, any new image opened with om.open_in_napari will be added as a new layer to the existing napari viewer.

Reuse an existing on-disk OMIO cache

If you repeatedly open the same large file with zarr_store="disk", OMIO can reuse an already existing, validated cache store instead of rebuilding it from the original image each time. This is useful for iterative interactive work on large files. When OMIO creates a disk-backed cache, it also stores the OMIO metadata and a cache manifest directly in the Zarr attributes. On later reads, reuse_disk_cache=True instructs OMIO to validate that manifest against the current source file and read settings before reusing the cache.

fname = "example_data/tif_files_from_3P_paper/Supplementary_Video_4.tif"

# start from a clean state so the first call definitely builds the cache:
om.cleanup_omio_cache(fname, full_cleanup=False)

# first call: creates .omio_cache/<basename>.zarr and stores OMIO cache metadata in it.
image_cache_1, metadata_cache_1 = om.imread(fname, zarr_store="disk")
print(f"First read shape: {image_cache_1.shape}, axes: {metadata_cache_1.get('axes', 'N/A')}")
print(image_cache_1.attrs["omio_cache_info"])

# second call: reuses the existing validated disk cache instead of rebuilding it.
image_cache_2, metadata_cache_2 = om.imread(
    fname,
    zarr_store       = "disk",
    reuse_disk_cache = True)
print(f"Second read shape: {image_cache_2.shape}, axes: {metadata_cache_2.get('axes', 'N/A')}")
print(image_cache_2.attrs["omio_cache_info"]["source_path"])

If the cache was created in a custom location via zarr_store_path, pass the same zarr_store_path again when reusing the cache. This tells OMIO where to look for the validated .omio_cache/<basename>.zarr store:

local_cache_root = "/Users/me/omio_local_cache"

image_cache_1, metadata_cache_1 = om.imread(
    fname,
    zarr_store       = "disk",
    zarr_store_path  = local_cache_root)

image_cache_2, metadata_cache_2 = om.imread(
    fname,
    zarr_store       = "disk",
    zarr_store_path  = local_cache_root,
    reuse_disk_cache = True)

If the source file changed, or if relevant settings such as explicit physical pixel size overrides no longer match, OMIO automatically falls back to rebuilding the cache from the original image instead of reusing a stale store.

The same .omio_cache convention is also used when creating empty disk-backed arrays with create_empty_image(..., zarr_store="disk"). In that case, OMIO records omio_cache_folder and omio_zarr_store_path in the returned metadata so the generated store can be inspected or cleaned up later.

Cleanup of temporary Zarr stores

There is intentionally no automatic cleanup of the temporary Zarr stores, as users may want to reuse them for downstream processing. To manually clean up the temporary Zarr stores created by OMIO, use:

om.cleanup_omio_cache(fname, full_cleanup=False)

This command cleans up only the temporary Zarr store associated with the given fname. To clean up all temporary Zarr stores created by OMIO, use:

om.cleanup_omio_cache(fname, full_cleanup=True)

For caches created in a custom location, you can remove the complete cache folder using the set local cache root path,

om.cleanup_omio_cache(local_cache_root, full_cleanup=True)

or use the path recorded in the returned metadata:

om.cleanup_omio_cache(metadata_cache_1["omio_cache_folder"], full_cleanup=True)

Write Zarr-backed arrays as OME-TIFF without loading the full store

Disk-backed Zarr arrays returned by imread(..., zarr_store="disk") can be written back to OME-TIFF with imwrite. For Zarr inputs, OMIO writes the output plane by plane instead of converting the entire Zarr store to a NumPy array first. This keeps the final OME-TIFF export memory-aware while preserving OMIO’s usual OME axis semantics: The written OME-TIFF uses OMIO’s established writer layout internally and reading it again with om.imread returns canonical TZCYX data.

This behavior applies equally to default disk caches next to the source file and to custom local cache locations created with zarr_store_path. The output is still a regular OME-TIFF file; only the export path avoids full Zarr materialization.

image_large, metadata_large = om.imread(
    fname,
    zarr_store       = "disk",
    reuse_disk_cache = True)

output_files = om.imwrite(
    fname,
    image_large,
    metadata_large,
    overwrite        = True,
    return_fnames    = True)

image_roundtrip, metadata_roundtrip = om.imread(output_files[0])
print(metadata_roundtrip["axes"])  # "TZCYX"

Efficiently view large images in Napari with OMIO’s DASK support

To efficiently view large images in napari without loading the entire dataset into memory, you can use OMIO’s built-in support for lazy loading and combine it with OMIO’s napari integration. This integration supports:

  • handling of in-memory and on-disk memory-mapped Zarr arrays

  • automatic axis reordering based on OME semantics

  • DASK support for out-of-core parallel processing

The following example uses a 1.1 GB 3D image stack with multiple channels:

fname = "example_data/tif_files_from_3P_paper/Supplementary_Video_4.tif"

First, memory-map the image on disk:

image_large, metadata_large = om.imread(fname, zarr_store="disk", reuse_disk_cache=True)

This stack has stored an erroneous PhysicalSizeZ in its ImageJ metadata, which is set to 0.0000185 microns instead of the correct value of 5 microns according to the supplementary information of the paper. Thus, let’s correct the corresponding metadata entry so that napari can correctly scale the Z axis upon viewing:

metadata_large["PhysicalSizeZ"] = 5  # in microns

Now open the large image in napari without DASK support:

om.open_in_napari(image_large, metadata_large, zarr_mode="zarr_nodask")

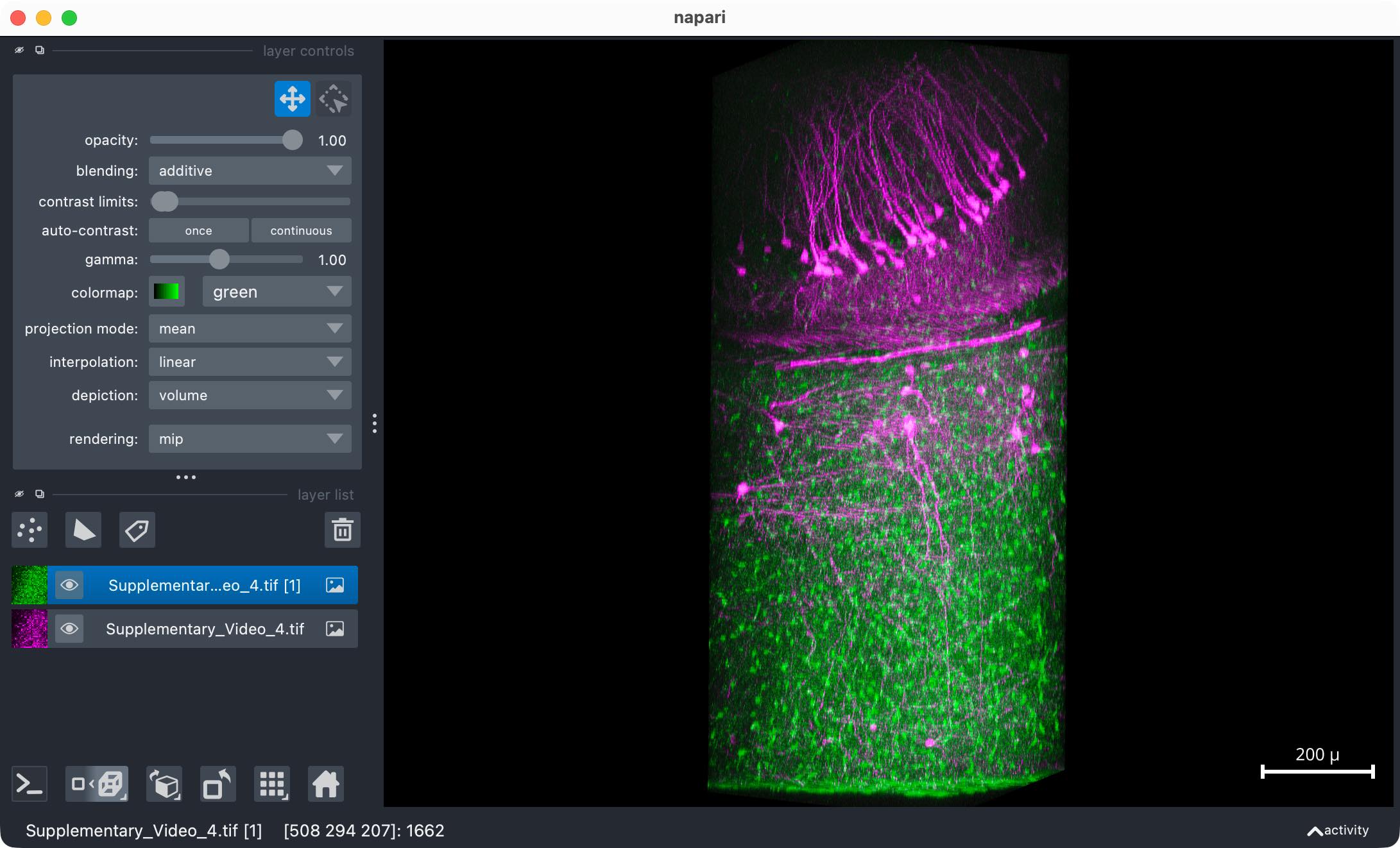

Structural 3D sample file opened in napari

Internally, OMIO’s napari viewing function correctly handles the true image scalings and axes, but needs to re-arrange the axes to the napari-expected order. Without DASK, this may take some time for very large images, as a temporary Zarr store is created with the re-ordered axes. This temporary store is created in the same .omio_cache folder as before.

To speed up this process, OMIO provides zarr_mode="zarr_dask" to use DASK for parallelized re-ordering and writing of the temporary Zarr store:

om.open_in_napari(image_large, metadata_large, zarr_mode="zarr_dask")

With returns=True, the napari viewer instance, the created napari layers, the used Zarr array, and the used axes order are also returned for further programmatic use:

napari_viewer, napari_layers, napari_datas, napari_axes = om.open_in_napari(
    image_large,
    metadata_large,
    zarr_mode = "zarr_dask",
    returns   = True)

After finishing the inspection, the temporary Zarr stores can be removed manually:

om.cleanup_omio_cache(fname, full_cleanup=True)
